AC24V Electric Temperature Control Valve For Plate Heat Exchanger Automatic Control
  • Name
  • Name

AC24V Electric Temperature Control Valve For Plate Heat Exchanger Automatic Control

MOQ: 1
Price: $15000
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
CUSTOM
Certification
ISO
Media:
Gas, Oil, Water, Acid
Power Supply:
AC24V
Pressure Bearing:
1.6/2.5/4.0MPa
Temperature Resistance:
220/350ºC
Highlight:

AC24V Electric Temperature Control Valve

,

Electric Temperature Control Valve Automatic

Product Description

Special Electric Temperature Control Valve For Plate Heat Exchanger Suitable For High-Temperature Water



Product Description

Electric control regulating valves are widely used in building automatic control systems such as urban heating, cooling, gas supply, air conditioning, etc. They are also suitable for production process automatic control systems in industries such as chemical, petroleum, metallurgy, power, and food.
Our company independently develops and produces electric two-way/three-way control valves and electric temperature control valves.  It can also fully adopt Xinao's high-quality control valves. And it can be flexibly adjusted according to the different on-site system equipment to achieve precise matching with the system, eliminate static errors, run smoothly, respond sensitively, and extend the service life.
It can be equipped with a new on-site independent controller with PID regulation function, precise control, multi loop control, diverse functions, and can achieve control of fluid flow rate, pressure, pressure difference, temperature, humidity, enthalpy value, and air quality.
The actuator has electric mechanical and electric hydraulic types, with manual and automatic adjustment functions, sensitive adjustment, large shut-off force, and adjustable flow characteristics (linear percentage). The electric actuator is equipped with a power-off automatic reset protection function. In the event of a sudden power outage in the system, the valve can automatically close (or fully open) and receive signals of 0-10V or 4-20mA, with valve position feedback function.
The valve seat is suitable for regulating chilled water, low-pressure hot water, domestic hot water, high-pressure hot water, seawater, hot oil, and steam in circulation pipelines. It has good linearity, large adjustability, tight sealing, high temperature resistance, and anti cavitation.
Product Features
The control unit has proportional integral (PI) or proportional integral derivative (PID) adjustment functions, ensuring stable and accurate control.
a, Flexible adjustment of control parameters can be made for different on-site working conditions to achieve system optimization.
b, The controller can read the current temperature value and observe the working status of the valve.
c, Expandable functions, such as remote settings, temperature compensation, over temperature alarm, day night/winter summer conversion.
d, The valve body seal adopts a V-shaped high-temperature sealing component to prevent the possibility of valve stem locking or leakage.
e, The valve stem or seat is paired and ground to ensure that the leakage is far below the national allowable standard, and zero leakage can be achieved.

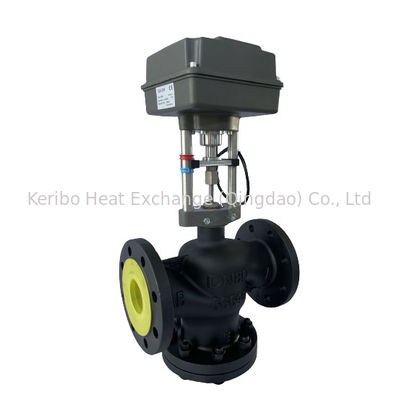

AC24V Electric Temperature Control Valve For Plate Heat Exchanger Automatic Control 0
Technical data
Function Parameter
Pressure level PN16/25/40/60
Maximum temperature resistance 180ºC 220ºC 350ºC
Working pressure Maximum not exceeding 0.8Mpa. If it has exceeded the limit, a high torque actuator can be selected
operation temperature If the temperature is too high, a valve radiator needs to be installed
ambient temperature -10-+55ºC
Connection method The national standard flange connection GBT/9113 (customizable) and threaded connection are only applicable to stainless steel valve seats
leakage Direct connection: 0... 0.02% zero leakage of kvs value
Allow media Cooling water, high-temperature water, compressed air, steam, thermal oil, etc
Material Science
valve body Cast iron HT250 sphere QT45 cast steel WCB Stainless steel material can be customized according to user requirements
304/316
blind plate Same as valve body
valve stem stainless steel304/316
valve seat stainless steel304/316
valve core stainless steel304/316
Valve stem tightness Polyethylene tetrafluoroethylene/carbon fiber
Rated travel DN25-DN100    20mm
DN100-DN200   40mm
DN200-DN350   40/60mm
