VT40M Replaceable Plates System 316L 304 Industrial PHE Replacement Parts

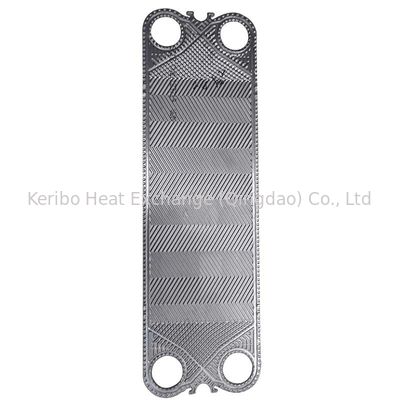

Our VT40M replaceable plate system is a precision-engineered, modular replacement solution designed for VT40M series gasketed plate heat exchangers (PHEs) used in heavy-duty industrial applications. As a core component of industrial heat exchange equipment maintenance, this system integrates high-performance 316L/304 stainless steel and titanium (Ti) plates, fully compatible with original VT40M frame, gaskets, and assembly parameters.

It delivers industry-leading heat transfer efficiency, exceptional corrosion resistance, and modular replaceability, meeting the strict requirements of continuous operation, high pressure, high temperature, and complex media in chemical, petrochemical, HVAC, power, marine, and general industrial fields. Fully compliant with ASTM, EN, ISO 9001, PED 2014/68/EU, and ASME BPVC Section VIII international standards, all plates come with complete Mill Test Certificates (MTC EN 10204 3.1) for full material traceability—ensuring reliable, long-term performance in industrial environments.

• 1:1 Original Design Matching: All replaceable plates are manufactured based on official VT40M drawings and high-precision 3D laser scanning data of genuine plates, with fully consistent dimensions, corrugation structure, port size, positioning holes, and sealing groove design.
• Direct Installation Without Modification: No cutting, drilling, or frame adjustment required—directly replace worn or damaged plates without disrupting the original heat exchanger system. Compatible with original VT40M gaskets (clip-on/glue-on) and tightening parameters, supporting mixed use with genuine plates in the same unit.
• Modular System Design: The replaceable plate system allows flexible addition/removal of plates to adjust total heat transfer area, adapting to process parameter changes, capacity expansion, or maintenance needs—ideal for industrial scenarios with dynamic production requirements.

Optimized for industrial harsh environments, the VT40M replaceable plate system offers three core material options, each tailored to specific industrial media and operating conditions:

• Advanced Forming Technology: Plates are stamped using 12,000-ton CNC hydraulic stamping equipment, one-time forming without secondary stretching to avoid internal stress concentration and material fatigue. Strict thickness tolerance control (±0.02mm) ensures uniform wall thickness and corrugation depth across every plate in the batch.
• Optimized Corrugation Design: Industrial-grade herringbone corrugation (30° for low pressure drop / 60° for high heat transfer) forms strong turbulent flow at low flow velocity, eliminating heat transfer dead zones. The heat transfer coefficient reaches up to 7000 W/(㎡·K), 3-5 times higher than traditional shell & tube heat exchangers, maximizing heat exchange efficiency while reducing system energy consumption.
• Sanitary Industrial Surface Treatment: All plates undergo strict pickling & passivation (standard) or sanitary electro-polishing (optional) treatment, forming a dense, smooth passive film that resists scaling, adhesion of industrial residues, and corrosion—extending equipment cleaning cycles and reducing maintenance frequency.

• Superior Structural Stability: Withstands continuous industrial operating conditions (design pressure up to 2.5MPa, design temperature -30℃ to +200℃) and cyclic pressure/temperature shocks, ensuring long service life (10-15 years for plates under normal use).
• Easy Replacement & Maintenance: Modular replaceable design allows quick disassembly/assembly of plates without special tools, reducing equipment downtime by 60% compared to non-replaceable heat exchangers. Lower maintenance costs and simplified inventory management—critical for large-scale industrial enterprises.

The VT40M replaceable plate system is exclusively designed for industrial scenarios requiring high reliability, corrosion resistance, and easy maintenance:

• Chemical & Petrochemical Industry: Acid/alkaline solution heating/cooling, solvent heat exchange, crude oil preheating, desulfurization systems, and weak corrosive chemical medium circulation (316L/Ti plates preferred).
• Power & Energy Industry: Boiler feed water heating, waste heat recovery, power plant cooling systems, and geothermal energy heat exchange (304/316L plates for general power, Ti for geothermal brine).
• Marine & Offshore Engineering: Seawater cooling for ship engines, offshore platform heat exchange, and marine HVAC systems (Ti plates as the optimal choice for chloride-rich marine environments).
• HVAC & District Energy: Central heating/cooling systems, industrial chiller water circulation, and district energy stations (304 plates for cost-effective large-scale deployment).
• General Industry: Manufacturing equipment cooling, lubricating oil temperature control, and industrial wastewater treatment (304/316L plates for corrosion resistance).

• Media Compatibility Testing: Each material option undergoes rigorous industrial media compatibility testing (acid/alkaline resistance, chloride resistance, scaling resistance) to ensure stable performance in target industrial environments.
• Industrial-Grade Sealing Matching: Strictly matched with VT40M original gaskets, the replaceable plate system achieves zero leakage under industrial operating pressures/temperatures, preventing media contamination and equipment damage.
• Batch Consistency Control: For large industrial orders, each batch of plates undergoes 100% dimensional inspection, hydraulic pressure test (1.25× design pressure), and penetration flaw detection to ensure uniform performance across all plates—critical for continuous industrial production.

• Long-Term Cost Savings: The high durability of 316L/Ti plates reduces replacement frequency by 50% compared to standard industrial plates, lowering total maintenance costs. The modular replaceable design minimizes downtime, reducing production loss by up to 80% for industrial enterprises.
• Global Industrial Compliance: All products meet international industrial standards (PED/ASME/ISO), supporting export to Europe, North America, the Middle East, and Southeast Asia—ideal for multinational industrial projects and distributors.
• Technical Support for Industrial Applications: Our professional technical team provides customized material selection advice based on industrial media, temperature, and pressure parameters, ensuring optimal application performance and cost-effectiveness.

Yes. All VT40M replaceable plates are 1:1 manufactured based on official VT40M drawings and 3D scanning data of genuine plates, with identical dimensions, corrugation structure, and sealing groove design. They can be directly installed without modification to the original frame, gaskets, or tightening parameters, and are fully compatible with genuine VT40M components.

• 304 plates are cost-effective, suitable for general industrial scenarios with non-corrosive or low-corrosive media (e.g., clean water, steam).
• 316L plates offer superior corrosion resistance to chloride, weak acid/alkaline media, and cleaning agents, ideal for corrosive industrial environments (e.g., chemical processing, food-grade industrial systems).
• Ti plates are designed for extreme industrial conditions, with unmatched resistance to seawater, high-chloride media, and strong oxidizing acids, perfect for marine, offshore, and high-corrosive chemical processes.

We offer flexible MOQs for industrial customers: standard MOQ is 50 pieces per material (304/316L/Ti) for bulk maintenance orders. For large-scale industrial projects (1000+ pieces), we support customized MOQ adjustments. Sample orders (1-5 pieces) are available for compatibility and quality testing before bulk purchase.

• For standard 304/316L plates (0.6mm/0.8mm thickness), lead time is 7-15 working days for orders under 1000 pieces.
• For Ti plates or custom thickness/surface treatment orders, lead time is 15-25 working days.
• For large industrial orders (1000+ pieces), we prioritize production to ensure on-time delivery, typically 20-30 working days.

We implement a full-process industrial quality control system in accordance with ISO 9001:

1. Raw material inspection (MTC EN 10204 3.1 certification verification, material composition/mechanical properties testing).
2. Mold precision verification before each production run to ensure consistency with VT40M original design.
3. 100% dimensional full inspection after stamping (thickness, dimensions, corrugation depth).
4. Hydraulic pressure test (1.25× design pressure, 30-minute holding, no leakage).
5. Penetration flaw detection (to check micro-cracks and forming defects).
6. Final factory inspection and batch quality report issuance.

Yes. We offer a full range of industrial-grade gaskets (EPDM, NBR, HNBR, FKM) fully compatible with VT40M plates, optimized for different industrial media and temperatures. For industrial bulk orders, we provide a plate + gasket bundle solution at a discounted price, reducing your procurement costs and communication time.

Under normal industrial operating conditions (correct material selection, proper use, and regular maintenance), the service life of 304 plates is 8-10 years, 316L plates is 10-12 years, and Ti plates is 12-15 years. Regular CIP cleaning and timely replacement of aging gaskets can significantly extend the service life of the plates.

Yes. We support full industrial customization, including:

• Custom plate thickness (0.5mm-1.0mm) for high-pressure industrial scenarios.
• Custom surface treatment (electro-polishing) for sanitary industrial applications.
• Special alloy material customization (254SMO, 904L) for extreme corrosive industrial environments.
• Custom packaging (palletized, export-standard) for industrial bulk transportation.

With over 18 years of R&D and production experience in industrial plate heat exchanger spare parts, we specialize in VT series replacement products. Our complete digital drawing library of VT40M plates ensures 100% compatibility with original VT40M heat exchangers, zero installation risk, and zero performance loss—critical for industrial continuous production.

We exclusively use high-quality raw materials from internationally renowned mills and titanium suppliers, strictly complying with ASTM/EN standards. Advanced manufacturing equipment and strict tolerance control ensure consistent batch quality, meeting the harsh requirements of industrial operating conditions.

As a direct manufacturer, we eliminate middlemen to offer competitive factory-direct pricing for industrial bulk orders. Our VT40M replaceable plates deliver the same performance as original VT40M products but at 35-60% of the original cost—significantly reducing industrial equipment maintenance and procurement expenses.

We have a stable global supply chain, exporting to more than 60 countries and regions. For industrial bulk orders, we offer flexible shipping options (sea/air/land) and customized sanitary/industrial packaging to ensure safe transportation. We also maintain a large stock of standard 304/316L plates, enabling fast delivery for urgent industrial maintenance needs.

Our dedicated industrial technical team provides 7×24 hours online support, helping with material selection, model matching, installation guidance, and maintenance advice. We offer a 18-month warranty for plates and 12-month warranty for gaskets, with free replacement for non-human-induced quality problems. For large industrial projects, we provide on-site technical support and commissioning services.
