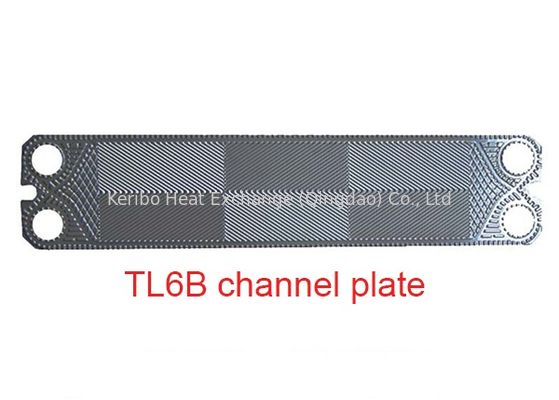

TL6B TL10P Heat Exchanger Optimized Replacement Channel Plate For Heat Exchanger Sealing

Our TL6B and TL10P heat exchanger channel plates are precision-engineered replacement components, exclusively designed for heat exchanger systems requiring reliable sealing performance. As core channel components, these plates play a critical role in guiding fluid flow, enhancing heat transfer efficiency, and ensuring tight sealing—effectively preventing fluid leakage and maintaining stable operation of heat exchangers in industrial, commercial, and HVAC applications. Fully compliant with ISO 9001, PED 2014/68/EU, ASTM A240, and EN 10088 international standards, our TL6B and TL10P channel plates are manufactured with high-grade materials and strict dimensional control, ensuring seamless compatibility with original TL6B/TL10P heat exchanger models and perfect适配 with sealing gaskets. Ideal for maintenance, repair, and bulk replacement, these channel plates solve common sealing-related issues such as fluid leakage, uneven flow distribution, and reduced heat transfer efficiency, making them the trusted choice for heat exchanger sealing optimization.

Specifically optimized for heat exchanger sealing performance, the TL6B and TL10P channel plates feature a refined sealing groove design, precise dimensional tolerance, and smooth surface finish—ensuring tight fitting with gaskets, eliminating leakage hidden dangers, and extending the service life of heat exchanger systems.

Our TL6B and TL10P channel plates are 1:1 manufactured based on original TL6B/TL10P drawings and high-precision 3D laser scanning data, ensuring full compatibility with TL6B and TL10P series heat exchangers, with a focus on sealing performance optimization:

• OEM-Level Dimensional Matching: Identical dimensions, channel structure, port size, positioning holes, and sealing groove design to the original TL6B/TL10P channel plates. The sealing groove is precision-machined to match standard heat exchanger gaskets (EPDM/NBR/HNBR/FPM), ensuring tight fitting and zero leakage.
• Direct Installation & Seamless Integration: No modification required—directly replace worn or damaged channel plates without adjusting the heat exchanger frame, tightening parameters, or assembly process. Fully compatible with original TL6B/TL10P gaskets and components, supporting mixed use with genuine plates in the same unit.
• Sealing Enhancement: The sealing groove features a rounded edge design and precise depth control (±0.02mm), reducing gasket wear and ensuring uniform pressure distribution across the sealing surface—enhancing sealing reliability and extending gasket service life.

We offer two core material options for TL6B and TL10P channel plates, tailored to different operating environments and sealing requirements, ensuring durability and long-term performance:

• SS316 Stainless Steel (Standard): Compliant with ASTM A240 and EN 10088 standards, featuring excellent corrosion resistance to chloride, weak acid/alkali, and industrial media. Ideal for industrial heat exchangers, chemical processing, and marine applications where sealing and corrosion resistance are critical. The material’s high tensile strength (≥515MPa) ensures structural stability under high pressure.
• SS304 Stainless Steel (Cost-Effective Alternative): Suitable for low-corrosive environments such as HVAC, district heating, and clean water circulation. Offers good atmospheric corrosion resistance and cost-effectiveness, while maintaining the same sealing groove precision and dimensional consistency as SS316 plates.
• Surface Treatment: All channel plates undergo pickling & passivation (standard) or electro-polishing (optional) treatment, forming a dense passive film that resists scaling, corrosion, and gasket adhesion—ensuring smooth fluid flow and maintaining sealing performance over time.

The TL6B and TL10P channel plates feature an optimized channel structure, designed to balance heat transfer efficiency and sealing performance—critical for heat exchanger operation:

• Precision Channel Structure: The channel width, depth, and spacing are strictly matched to original TL6B/TL10P designs, ensuring uniform fluid flow and eliminating flow dead zones. This not only enhances heat transfer efficiency (heat transfer coefficient up to 6500 W/(㎡·K)) but also reduces fluid pressure drop, minimizing gasket stress and preventing leakage.
• Sealing & Flow Synergy: The channel edge is precision-machined to ensure a flat, smooth surface, avoiding uneven pressure distribution that can cause gasket deformation and leakage. The integrated design of channels and sealing grooves ensures that fluid flow does not affect sealing performance, even under cyclic pressure changes.
• High-Pressure Resistance: Designed to withstand operating pressures up to 2.5MPa (standard), with reinforced edge structure to prevent plate deformation under high pressure—ensuring stable sealing and structural integrity in harsh industrial conditions.

Adopting advanced manufacturing equipment and strict quality control processes, ensuring consistent performance across batches—critical for bulk industrial orders and continuous heat exchanger operation:

• CNC Stamping & Machining: 12,000-ton CNC hydraulic stamping equipment for one-time channel plate forming, followed by precision CNC machining for sealing grooves and positioning holes. Strict dimensional tolerance control (±0.02mm) ensures uniform channel size, sealing groove depth, and plate flatness across all products.
• Defect-Free Production: Each channel plate undergoes 100% appearance inspection, dimensional measurement, and flatness testing to eliminate defects such as burrs, bubbles, dimensional deviation, and surface cracks. Sealing grooves are inspected with high-precision measuring tools to ensure compatibility with gaskets.
• Batch Consistency Control: For bulk orders, each batch of TL6B/TL10P channel plates undergoes random sampling testing for material composition, mechanical properties, and sealing performance—ensuring uniform quality and reliable performance in large-scale heat exchanger systems.

Our TL6B and TL10P heat exchanger channel plates are widely used in various industrial, commercial, and HVAC scenarios, focusing on sealing performance and reliable operation:

• Industrial Heat Exchangers: Used in chemical processing, petrochemical, pulp & paper, and manufacturing heat exchangers. The SS316 channel plates ensure reliable sealing and corrosion resistance in corrosive media, preventing fluid leakage and maintaining production continuity.
• HVAC & District Energy: Ideal for central heating/cooling systems, industrial chillers, and district energy stations. The SS304/SS316 channel plates provide cost-effective, reliable sealing, ensuring efficient heat transfer and stable operation of HVAC systems.
• Marine & Offshore Engineering: Suitable for shipboard heat exchangers, offshore platform cooling systems, and seawater heat exchange. The SS316 channel plates resist chloride corrosion, ensuring tight sealing in marine environments.
• Food & Beverage Industry: Used in food processing heat exchangers (pasteurization, cooling) with electro-polished SS316 channel plates. The smooth surface and reliable sealing prevent cross-contamination, meeting food-grade standards.
• Power & Energy: Applied in boiler feed water heating, waste heat recovery, and power plant cooling systems. The high-pressure resistance and reliable sealing of TL6B/TL10P channel plates ensure stable operation in power generation processes.

We implement a strict Application Quality (AQ) system tailored for heat exchanger channel plates, focusing on sealing performance, compatibility, and long-term reliability in real industrial scenarios:

• Sealing Performance Testing: Each channel plate undergoes a rigorous sealing test with matching gaskets, simulating real operating pressure (1.25* design pressure, 30-minute holding test) to ensure zero leakage. The sealing groove precision is tested to verify tight fitting with gaskets, eliminating leakage hidden dangers.
• Compatibility Verification: Strictly tested with original TL6B/TL10P heat exchanger frames and gaskets to ensure direct installation and stable operation. The plates are tested for compatibility with common industrial media (acid, alkali, oil, seawater) to ensure no corrosion or performance degradation.
• Mechanical Performance Testing: Each batch of channel plates undergoes tensile strength, hardness, and flatness testing to ensure structural stability under high pressure and temperature. The plates are tested for fatigue resistance to ensure long-term service life in cyclic operating conditions.
• Batch Consistency Control: For bulk industrial orders, each batch of TL6B/TL10P channel plates undergoes 100% dimensional inspection, sealing testing, and material composition analysis to ensure uniform quality—critical for continuous heat exchanger operation and large-scale maintenance projects.

Our TL6B and TL10P channel plates are designed to improve heat exchanger sealing performance, reduce maintenance costs, and enhance operational efficiency for industrial users:

• Reduced Leakage Risk: The sealing-optimized design and precision manufacturing ensure tight fitting with gaskets, reducing fluid leakage by 100% under normal operating conditions—preventing equipment damage, media contamination, and safety hazards.
• Lower Maintenance Costs: The corrosion-resistant materials and durable structure extend the service life of channel plates (10-12 years for SS316, 8-10 years for SS304), reducing replacement frequency. The smooth surface reduces scaling and cleaning frequency, lowering labor costs.
• Improved Operational Efficiency: The optimized channel design enhances heat transfer efficiency by 8-12%, reducing energy consumption. The reliable sealing and stable performance minimize heat exchanger downtime, ensuring continuous production and operation.

Yes. Our TL6B and TL10P channel plates are 1:1 manufactured based on original TL6B/TL10P drawings and high-precision 3D scanning data of genuine parts. They feature identical dimensions, channel structure, sealing groove design, and positioning holes, ensuring direct installation without modifying the heat exchanger frame, gaskets, or assembly parameters. They are fully compatible with original TL6B/TL10P components and can be mixed with genuine plates in the same unit.

The sealing-optimized design focuses on three key points: 1) Precision sealing groove machining (±0.02mm tolerance) ensures tight fitting with gaskets, eliminating gaps that cause leakage. 2) Rounded edge design reduces gasket wear, extending gasket service life. 3) Flat, smooth surface ensures uniform pressure distribution across the sealing area, preventing gasket deformation under high pressure. This design ensures reliable sealing and long-term stability.

Choose based on your operating environment: 1) SS316 (standard) for corrosive media (chemical, marine, petrochemical) where sealing and corrosion resistance are critical. 2) SS304 (alternative) for low-corrosive environments (HVAC, clean water) for cost-effectiveness. 3) SS316L (optional) for extreme corrosive conditions (strong acids, high salinity). Our technical team can provide customized material selection advice based on your specific application.

We offer flexible MOQs to meet different customer needs: standard MOQ is 50 pieces per model (TL6B/TL10P) per material. For small maintenance orders, we support MOQ 10 pieces. For sample testing before bulk purchase, we support MOQ 1 piece to verify compatibility, sealing performance, and dimensional accuracy.

For standard SS304/SS316 channel plates (TL6B/TL10P), the lead time is 7-15 working days for orders under 500 pieces. For custom material (SS316L, titanium) or thickness orders, the lead time is 15-25 working days. For large bulk orders (1000+ pieces), we prioritize production to ensure on-time delivery, typically 20-30 working days.

Yes. We support full customization for TL series heat exchangers: 1) Dimensional customization to match special TL series models (beyond TL6B/TL10P). 2) Material customization (SS316L, titanium, 254SMO) for extreme operating conditions. 3) Sealing groove customization for special gasket sizes. 4) Surface treatment customization (electro-polishing) for sanitary or high-corrosion applications. Simply provide your heat exchanger specifications, and we will design a tailored solution.

We implement a full-process quality control system in accordance with ISO 9001 and AQ standards: 1) Raw material inspection (MTC EN 10204 3.1 certification, material composition testing). 2) Mold precision verification before production. 3) 100% dimensional and appearance inspection for channel plates. 4) Sealing performance testing, mechanical performance testing, and corrosion testing. 5) Final factory inspection and batch quality report issuance.

Under normal operating conditions (correct material selection, proper use, and regular maintenance), the service life is: SS316 channel plates 10-12 years, SS304 channel plates 8-10 years, SS316L channel plates 12-15 years. Regular cleaning, gasket replacement, and inspection can significantly extend the service life of the plates and ensure heat exchanger sealing performance.

With over 18 years of experience in heat exchanger component R&D and production, we specialize in TL series channel plates. We have a complete digital drawing library of TL6B/TL10P models, ensuring our products are 1:1 matched with original designs. Our sealing-optimized design guarantees zero leakage and stable performance, making us the trusted choice for TL6B/TL10P heat exchanger maintenance.

We implement a comprehensive AQ system, with each channel plate undergoing rigorous sealing testing, compatibility verification, and mechanical performance testing. We guarantee that our TL6B/TL10P channel plates meet international industrial standards, delivering reliable sealing and long-term durability in harsh operating environments.

Adopting advanced CNC stamping and machining equipment, we ensure strict dimensional tolerance control and consistent batch quality. Our channel plates are manufactured to the highest industrial standards, making them ideal for bulk orders where uniform performance and sealing reliability are critical.

As a direct manufacturer, we eliminate middlemen to offer competitive factory-direct pricing. Our TL6B/TL10P channel plates deliver the same performance and sealing reliability as original brand products but at 35-60% of the original cost—significantly reducing your heat exchanger maintenance and procurement expenses.

We have a stable global supply chain system, with a large stock of standard SS304/SS316 TL6B/TL10P channel plates, ensuring fast delivery for urgent maintenance needs. We provide flexible shipping options (sea/air/land) and export-standard packaging to ensure safe transportation, exporting to more than 60 countries and regions.

Our dedicated technical team provides 7*24 hours online support, helping with material selection, model matching, installation guidance, and maintenance advice tailored for TL6B/TL10P heat exchangers. We offer an 18-month warranty for channel plates, with free replacement for non-human-induced quality problems. For large industrial projects, we provide on-site technical support and commissioning services.
