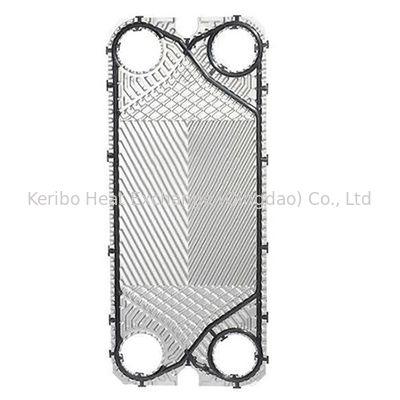

M10M SS316 0.5mm PHE Plates Premium Heat Exchanger Spare Parts

Our M10M SS316 0.5mm plate heat exchanger (PHE) plates are precision-engineered, 100% interchangeable replacement spare parts exclusively designed for M10M series gasketed plate heat exchangers. Manufactured with high-grade SS316 stainless steel and strict 0.5mm thickness tolerance control, these plates deliver exceptional corrosion resistance, superior heat transfer efficiency, and long-term structural stability—ideal for heavy-duty industrial maintenance, repair, and bulk replacement scenarios.

As a core component of PHE spare parts systems, our M10M SS316 0.5mm plates fully comply with ASTM A240, EN 10088, ISO 9001, PED 2014/68/EU international standards, with complete Mill Test Certificates (MTC EN 10204 3.1) for full material traceability. They are compatible with original M10M PHE frames, gaskets (EPDM/NBR/HNBR/FPM), and tightening parameters, ensuring direct installation and stable operation in chemical, petrochemical, food & beverage, marine, and general industrial fields worldwide.

• 1:1 Original Design Matching: All M10M plates are manufactured based on official M10M drawings and high-precision 3D laser scanning data of genuine M10M plates, with fully consistent dimensions, corrugation structure, port size, positioning holes, and sealing groove design.
• No Modification Required: Directly replace worn or damaged plates without cutting, drilling, or frame adjustment. Fully compatible with original M10M gaskets and assembly parameters, supporting mixed use with genuine plates in the same unit—zero installation risk, zero leakage hidden danger, and zero performance loss.
• Industrial-Grade Precision: Strict dimensional tolerance control (±0.02mm) ensures perfect fitting with M10M heat exchanger components, critical for continuous industrial production.

• Food & Industrial Grade SS316: Adopt high-quality cold-rolled SS316 stainless steel coils from internationally renowned mills, complying with ASTM A240 and EN 10088 standards. The ultra-low carbon (SS316L optional) design effectively avoids intergranular corrosion, offering exceptional resistance to pitting, crevice corrosion, chloride, weak acid/alkaline media, and CIP/SIP cleaning agents—ideal for corrosive industrial environments.
• 0.5mm Ultra-Thin Design: The 0.5mm thin plate minimizes thermal resistance, increasing the heat transfer coefficient by 5%-8% compared to 0.6mm/thicker plates, maximizing heat exchange efficiency while reducing system energy consumption. Lightweight design also reduces the overall load of the M10M heat exchanger frame.
• Industrial Surface Treatment: All plates undergo strict pickling & passivation (standard) or sanitary electro-polishing (optional) treatment, forming a dense, smooth passive film that resists scaling, adhesion of industrial residues, and corrosion—extending equipment cleaning cycles and reducing maintenance frequency.

• Advanced Forming Technology: Plates are stamped using 12,000-ton CNC hydraulic stamping equipment, one-time forming without secondary stretching to avoid internal stress concentration and material fatigue. Strict thickness tolerance control (±0.02mm) ensures uniform wall thickness and corrugation depth across every plate in the batch—critical for bulk industrial orders requiring consistent performance.
• Optimized Corrugation Design: Industrial-grade herringbone corrugation (30° for low pressure drop / 60° for high heat transfer) forms strong turbulent flow at low flow velocity, eliminating heat transfer dead zones. The heat transfer coefficient reaches up to 7000 W/(㎡·K), 3-5 times higher than traditional shell & tube heat exchangers, ensuring efficient heat exchange in industrial processes.
• Zero Defect Production: Each plate undergoes rigorous inspection to eliminate defects such as burrs, bubbles, dimensional deviation, and surface cracks, ensuring 100% qualified products for industrial use.

• Long Service Life: Under normal industrial operating conditions (correct material selection, proper use, and regular maintenance), the service life of M10M SS316 0.5mm plates reaches 10-12 years, 30% longer than standard SS304 plates—reducing replacement frequency and maintenance costs.
• Easy Replacement & Maintenance: Modular design allows quick disassembly/assembly of plates without special tools, reducing equipment downtime by 60% compared to non-replaceable heat exchangers. Simplified inventory management—ideal for large-scale industrial enterprises and maintenance companies.

The M10M SS316 0.5mm PHE plates are exclusively designed for heavy-duty industrial scenarios requiring reliable corrosion resistance and high heat transfer efficiency:

• Chemical & Petrochemical Industry: Acid/alkaline solution heating/cooling, solvent heat exchange, crude oil preheating, desulfurization systems, and corrosive media circulation (SS316L plates preferred for extreme conditions).
• Food & Beverage Industry: Milk pasteurization, beer brewing, juice processing, and edible oil temperature control—sanitary electro-polished SS316 plates meet food contact hygiene standards (FDA/EU 1935/2004).
• Marine & Offshore Engineering: Seawater cooling for ship engines, offshore platform heat exchange, and marine HVAC systems—SS316/SS316L plates resist chloride corrosion, ideal for chloride-rich marine environments.
• Power & Energy Industry: Boiler feed water heating, waste heat recovery, power plant cooling systems, and geothermal energy heat exchange (SS304 for general power, SS316 for geothermal brine).
• HVAC & District Energy: Central heating/cooling systems, industrial chiller water circulation, and district energy stations—cost-effective SS304/SS316 plates for large-scale deployment.
• General Industry: Manufacturing equipment cooling, lubricating oil temperature control, and industrial wastewater treatment (SS316 plates for corrosion resistance).

We implement a strict Application Quality (AQ) system to ensure our M10M SS316 0.5mm plates perform reliably in real industrial scenarios:

• Media Compatibility Testing: Each SS316 plate undergoes rigorous corrosion testing (simulating acid/alkaline, chloride, and oil-based media) to ensure stable performance in target industrial environments, with zero corrosion/aging under long-term operation.
• Sealing Matching Verification: Strictly matched with M10M original gaskets, the plates achieve zero leakage under industrial operating pressures/temperatures (1.25* design pressure, 30-minute holding test), preventing media contamination and equipment damage.
• Batch Consistency Control: For large industrial orders, each batch of plates undergoes 100% dimensional inspection, hydraulic pressure test, and penetration flaw detection to ensure uniform performance across all plates—critical for continuous industrial production.
• Industrial Safety Compliance: All plates meet PED/ASME safety standards, supporting export to Europe, North America, the Middle East, and Southeast Asia—ideal for multinational industrial projects and distributors.

• Long-Term Cost Savings: The high durability of SS316 plates reduces replacement frequency by 50% compared to standard SS304 plates, lowering total maintenance costs. The 0.5mm ultra-thin design maximizes heat transfer efficiency, reducing energy consumption by up to 10% in industrial heat exchange systems.
• Operational Efficiency Improvement: Modular replaceable design minimizes equipment downtime, reducing production loss by up to 80% for industrial enterprises. Easy maintenance reduces labor costs and production interruptions.
• Global Market Access: All products come with complete certification documents (MTC, ISO 9001, PED, CE), ensuring compliance with international industrial standards and supporting global export projects.

Yes. All our M10M plates are 1:1 manufactured based on official M10M drawings and high-precision 3D scanning data of genuine plates, with identical dimensions, corrugation structure, and sealing groove design. They can be directly installed without modification to the original frame, gaskets, or tightening parameters, and are fully compatible with genuine M10M components.

The 0.5mm ultra-thin design minimizes thermal resistance, increasing the heat transfer coefficient by 5%-8% compared to 0.6mm/thicker plates, maximizing heat exchange efficiency while reducing system energy consumption. Additionally, the lightweight design reduces the overall load of the M10M heat exchanger frame, extending the service life of the frame and reducing long-term maintenance costs.

We offer flexible MOQs for industrial customers: standard MOQ is 50 pieces per material (SS316/SS316L) for bulk maintenance orders. For large-scale industrial projects (1000+ pieces), we support customized MOQ adjustments. Sample orders (1-5 pieces) are available for compatibility and quality testing before bulk purchase.

• For standard SS316 plates (0.5mm thickness), lead time is 7-15 working days for orders under 500 pieces.
• For SS316L plates or custom thickness/surface treatment orders, lead time is 15-25 working days.
• For large industrial orders (1000+ pieces), we prioritize production to ensure on-time delivery, typically 20-30 working days.

We implement a full-process industrial quality control system in accordance with ISO 9001 and AQ standards:

1. Raw material inspection (MTC EN 10204 3.1 certification verification, material composition/mechanical properties testing).
2. Mold precision verification before each production run to ensure consistency with M10M original design.
3. 100% dimensional full inspection after stamping (thickness, dimensions, corrugation depth).
4. Hydraulic pressure test (1.25* design pressure, 30-minute holding, no leakage).
5. Penetration flaw detection (to check micro-cracks and forming defects).
6. Final factory inspection and batch quality report issuance.

Yes. We support full industrial customization:

• Custom plate thickness (0.4mm-1.0mm) for high-pressure industrial scenarios.
• Custom surface treatment (electro-polishing) for sanitary industrial applications (food/pharmaceutical).
• Special alloy material customization (SS316L, titanium, 254SMO) for extreme corrosive industrial environments.
• Custom packaging (palletized, export-standard) for industrial bulk transportation.

Yes. We offer a full range of industrial-grade gaskets (EPDM, NBR, HNBR, FPM) fully compatible with M10M SS316 0.5mm plates, optimized for different industrial media and temperatures. For industrial bulk orders, we provide a plate + gasket bundle solution at a discounted price, reducing your procurement costs and communication time.

Under normal industrial operating conditions (correct material selection, proper use, and regular CIP cleaning), the service life of SS316 plates is 10-12 years, and SS316L plates is 12-15 years. Regular maintenance (cleaning, gasket replacement) can significantly extend the service life of the plates.

With over 18 years of R&D and production experience in industrial plate heat exchanger spare parts, we specialize in M series replacement products. Our complete digital drawing library of M10M plates ensures 100% compatibility with original M10M heat exchangers, zero installation risk, and zero performance loss—critical for industrial continuous production.

We exclusively use high-quality SS316 stainless steel coils from internationally renowned mills, strictly complying with ASTM/EN standards. Advanced CNC stamping equipment and strict tolerance control ensure consistent batch quality, meeting the harsh requirements of industrial operating conditions.

As a direct manufacturer, we eliminate middlemen to offer competitive factory-direct pricing for industrial bulk orders. Our M10M SS316 0.5mm plates deliver the same performance as original M10M products but at 35-60% of the original cost—significantly reducing industrial equipment maintenance and procurement expenses.

We have a stable global supply chain, exporting to more than 60 countries and regions. For industrial bulk orders, we offer flexible shipping options (sea/air/land) and customized industrial packaging to ensure safe transportation. We also maintain a large stock of standard SS316 plates, enabling fast delivery for urgent industrial maintenance needs.

Our dedicated industrial technical team provides 7*24 hours online support, helping with material selection, model matching, installation guidance, and maintenance advice. We offer a 18-month warranty for plates, with free replacement for non-human-induced quality problems. For large industrial projects, we provide on-site technical support and commissioning services.
