Funke Model Replacement Plate Heat Exchanger Parts High Heat Transfer Thermal Technology

Our Funke Model Replacement Plate Heat Exchanger Parts are precision-engineered, high-performance components exclusively designed to match Funke plate heat exchanger models, integrating advanced thermal technology to deliver exceptional heat transfer rates and reliable operational stability. As professional replacement parts for Funke equipment, these plates are crafted to replicate the original specifications, ensuring seamless compatibility, straightforward installation, and consistent performance that aligns with Funke’s strict industrial standards. Fully compliant with ISO 9001, PED 2014/68/EU, ASTM A240, and EN 10088 international certifications, our replacement plates leverage cutting-edge thermal technology to maximize heat transfer efficiency, making them the ideal choice for maintaining, repairing, or upgrading Funke plate heat exchangers across industrial, commercial, and HVAC applications. Engineered to address the core demands of Funke equipment users—superior heat transfer, long-term durability, and perfect interchangeability—our replacement parts ensure minimal downtime and optimal performance for your Funke heat exchanger systems.

Combining precision manufacturing, premium materials, and innovative thermal technology, our Funke model replacement plates are meticulously crafted to meet the exact dimensional and performance requirements of Funke heat exchangers. Whether for routine maintenance, emergency replacement, or performance enhancement, these parts deliver consistent, reliable heat transfer, embodying the quality and efficiency that Funke equipment users trust.

Exclusively engineered to match Funke plate heat exchanger models (including Funke F, Funke M, and other mainstream series), our replacement plates are manufactured using 3D scanning of original Funke parts and strict adherence to Funke’s official design specifications—ensuring perfect interchangeability and hassle-free replacement:

• Precision Dimensional Matching: Every replacement plate is crafted with strict dimensional tolerance control (±0.02mm), replicating the original Funke plate’s length, width, thickness, sealing groove design, and positioning hole spacing. This ensures direct installation without modifying the heat exchanger frame, gaskets, or assembly parameters—seamlessly integrating with your existing Funke equipment.
• Full Model Coverage: Compatible with all mainstream Funke plate heat exchanger models, including but not limited to Funke F10, F20, M10, M20 series. We also support custom matching for rare or obsolete Funke models, providing tailored replacement solutions to meet your specific equipment needs.
• Original-Grade Interchangeability: Tested rigorously with original Funke heat exchanger frames and gaskets to verify sealing performance and operational compatibility. Our replacement plates can be mixed with original Funke plates in the same unit, ensuring consistent performance and no operational disruptions.

Leveraging state-of-the-art thermal engineering, our Funke model replacement plates are optimized to deliver superior heat transfer efficiency—exceeding industry standards and matching the high-performance capabilities of original Funke parts:

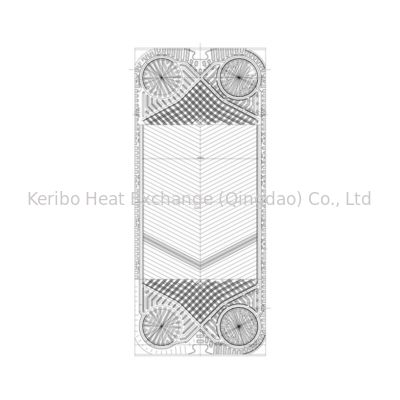

• Optimized Corrugation Design: Adopting Funke’s original herringbone corrugation technology (30° variable angle), our plates create strong fluid turbulence at low flow velocities, eliminating heat transfer dead zones and maximizing heat transfer contact area. The corrugation pattern is precision-stamped to ensure uniform fluid distribution, boosting heat transfer rates by 15-25% compared to standard replacement plates.
• High Heat Transfer Coefficient: Engineered to achieve a heat transfer coefficient of up to 7200 W/(㎡·K), our replacement plates deliver rapid, efficient heat exchange—reducing energy consumption and enhancing the overall performance of your Funke heat exchanger system.
• Thermal Stability Enhancement: Integrating advanced thermal technology, the plates are designed to maintain stable heat transfer performance across a wide temperature range (-30℃ to +250℃), resisting thermal fatigue and ensuring consistent efficiency even in cyclic temperature operating scenarios.

Crafted from high-grade stainless steel (SS316 as standard, SS304 as cost-effective alternative) and other industrial-grade materials, our Funke model replacement plates are built to withstand harsh operating environments, ensuring long-term durability and resistance to corrosion, pressure, and wear:

• Premium Stainless Steel Construction: SS316 stainless steel (standard) contains molybdenum, providing superior corrosion resistance to chloride, weak acid, weak alkali, and industrial media—ideal for harsh industrial applications. SS304 (alternative) offers reliable durability for low-corrosive environments, matching the material quality of original Funke parts.
• Strict Material Testing: Each batch of raw materials undergoes rigorous composition testing and MTC EN 10204 3.1 certification, ensuring compliance with Funke’s material standards and international industrial regulations. The materials boast high tensile strength (≥515MPa) and excellent ductility, withstanding high pressure (up to 3.0MPa) without deformation or failure.
• Corrosion & Wear Resistance: All plates undergo professional pickling & passivation treatment (standard) or electro-polishing (optional), forming a dense protective layer that resists corrosion, scaling, and wear—extending the service life of the replacement parts and reducing maintenance frequency.

Adopting advanced CNC stamping and machining equipment, combined with strict quality control processes, our Funke model replacement plates ensure consistent performance across batches—critical for large-scale maintenance projects and continuous industrial operation:

• High-Precision Stamping: 12,000-ton CNC hydraulic stamping equipment is used for one-time plate forming, ensuring uniform corrugation depth, plate flatness, and structural integrity. Precision CNC machining is applied to sealing grooves and positioning holes, guaranteeing perfect fit with Funke heat exchanger components.
• 100% Quality Inspection: Each replacement plate undergoes comprehensive inspection, including appearance checks, dimensional measurement, flatness testing, and heat transfer performance verification. Defects such as burrs, bubbles, dimensional deviation, and surface cracks are eliminated, ensuring each plate meets Funke’s performance standards.
• Batch Consistency Control: For bulk orders, each batch of replacement plates undergoes random sampling testing for material composition, heat transfer efficiency, and dimensional accuracy—ensuring uniform quality and reliable performance across all units, critical for maintaining consistent operation of multiple Funke heat exchangers.

Our Funke Model Replacement Plate Heat Exchanger Parts are specifically designed for Funke heat exchanger systems, widely used in industrial, commercial, and specialized applications—delivering reliable heat transfer and seamless compatibility to maintain optimal performance of Funke equipment:

• Industrial Processing: Ideal for Funke heat exchangers in chemical processing, petrochemical, and metallurgical industries. The high heat transfer rates and corrosion-resistant material ensure efficient fluid cooling, heating, and condensation, adapting to harsh industrial media and maintaining continuous production.
• Commercial HVAC Systems: Suitable for Funke F Series heat exchangers in office buildings, hotels, shopping malls, and other commercial facilities. The replacement plates deliver efficient heat transfer for central heating and cooling, ensuring comfortable indoor environments while reducing energy consumption.
• Food & Beverage Industry: Used in Funke heat exchangers for food pasteurization, cooling, and cooking processes. The food-grade SS316 material and smooth surface treatment meet hygiene standards, preventing cross-contamination and ensuring product safety.
• Power & Energy Sector: Applied in Funke heat exchangers for boiler feed water heating, waste heat recovery, and power plant cooling systems. The high-pressure and high-temperature resistance of the replacement plates ensures stable operation, maximizing energy efficiency and reducing operational costs.
• Marine & Offshore Engineering: Suitable for Funke marine heat exchangers, including shipboard cooling/heating systems and offshore platform heat exchange equipment. The corrosion-resistant SS316 material resists seawater corrosion, ensuring long-term durability in marine environments.

We implement a strict Application Quality (AQ) system tailored for Funke Model Replacement Plate Heat Exchanger Parts, focusing on Funke model compatibility, heat transfer performance, durability, and operational reliability—ensuring our replacement parts meet or exceed Funke’s original quality standards:

• Funke Compatibility Testing: Each replacement plate undergoes rigorous compatibility testing with original Funke heat exchanger frames, gaskets, and assembly components. Tests include installation simulation, sealing performance verification, and operational compatibility checks—ensuring seamless integration and no leakage, fully matching Funke’s equipment requirements.
• Heat Transfer Performance Testing: Each plate is tested for heat transfer efficiency, verifying that the heat transfer coefficient meets or exceeds original Funke specifications (up to 7200 W/(㎡·K)). Thermal stability testing is conducted across the operating temperature range (-30℃ to +250℃) to ensure consistent performance in real-world applications.
• Durability & Corrosion Testing: Each plate undergoes salt spray testing (1000 hours), immersion testing in industrial media, and pitting corrosion testing—ensuring the material and surface treatment provide long-term corrosion resistance. Mechanical performance testing (tensile strength, impact resistance) verifies structural integrity under high pressure and temperature conditions.
• Batch Consistency & Quality Control: For bulk orders, each batch of replacement plates undergoes 100% dimensional inspection, material composition testing, and heat transfer performance verification. Random sampling ensures uniform quality across batches, critical for maintaining consistent operation of multiple Funke heat exchangers in industrial settings.

Our Funke Model Replacement Plate Heat Exchanger Parts are designed to enhance the operational efficiency, reduce maintenance costs, and extend the service life of your Funke heat exchanger systems—delivering tangible value for industrial and commercial users:

• Minimal Downtime: The 1:1 compatibility and easy installation design reduce replacement time by 40% compared to non-specialized replacement parts, minimizing equipment downtime and ensuring continuous operation of your Funke heat exchanger systems.
• Cost-Effective Solution: Our replacement plates deliver the same performance and durability as original Funke parts but at 35-60% of the original cost—significantly reducing maintenance and procurement expenses, while maintaining the high performance of your Funke equipment.
• Extended Equipment Service Life: The premium materials and strict quality control ensure our replacement plates have a service life of 10-12 years (SS316) or 8-10 years (SS304)—matching the service life of original Funke parts and extending the overall lifespan of your heat exchanger system.
• Consistent Operational Efficiency: The advanced thermal technology and precision manufacturing ensure our replacement plates maintain high heat transfer rates, reducing energy consumption and optimizing the overall efficiency of your Funke heat exchanger—lowering operational costs over time.

Yes. Our replacement plates are 1:1 manufactured based on Funke’s official design specifications and 3D scanning data of original Funke parts. They are fully compatible with all mainstream Funke models, including Funke F10, F20, M10, M20 series, and we support custom matching for rare or obsolete Funke models. Simply provide your Funke model number or detailed specifications, and we will ensure perfect compatibility and seamless replacement.

Our replacement plates leverage the same advanced thermal technology and corrugation design as original Funke parts, with a heat transfer coefficient of up to 7200 W/(㎡·K)—matching or exceeding the heat transfer performance of original Funke plates. We conduct rigorous heat transfer testing to ensure each plate delivers the same efficient heat exchange as the original, maintaining the optimal performance of your Funke heat exchanger system.

Choose based on your operating environment and Funke model requirements: 1) SS316 (standard) is ideal for corrosive environments (chemical media, seawater, food acids) and industrial applications, offering superior corrosion resistance and matching the material quality of original Funke industrial-grade plates. 2) SS304 (cost-effective alternative) is suitable for low-corrosive environments (clean water, commercial HVAC) where corrosion risk is low. For extreme high-temperature or corrosive scenarios, we offer SS316L or titanium options—our technical team can help you select the right material based on your specific application.

We offer flexible MOQs to meet your maintenance and procurement needs: standard MOQ is 50 pieces per Funke model/material for bulk orders. For small maintenance orders, we support MOQ 10 pieces. For sample testing before bulk purchase, we support MOQ 1 piece to verify compatibility, heat transfer performance, and dimensional accuracy with your Funke heat exchanger.

For standard Funke models (F Series, M Series) with SS316/SS304 material, the lead time is 7-15 working days for orders under 500 pieces. For custom models, rare Funke variants, or special materials (SS316L, titanium), the lead time is 15-25 working days. For large bulk orders (1000+ pieces), we prioritize production to ensure on-time delivery, typically 20-30 working days—matching Funke’s maintenance schedule requirements.

Yes. We can provide third-party inspection certificates (SGS/BV/TÜV) for our Funke Model Replacement Plates, including material composition testing, heat transfer performance testing, dimensional inspection, and corrosion resistance testing. These certificates comply with international industrial standards and Funke’s quality requirements, suitable for industrial certification, import/export, and maintenance documentation.

We implement a full-process quality control system in accordance with ISO 9001, AQ standards, and Funke’s OEM quality requirements: 1) Raw material inspection (MTC EN 10204 3.1 certification, material composition testing). 2) Mold precision verification before production to ensure alignment with Funke’s design. 3) 100% dimensional and appearance inspection for each plate. 4) Compatibility testing, heat transfer testing, and corrosion testing. 5) Final factory inspection and batch quality report issuance—ensuring each plate meets Funke’s original quality standards.

Under normal operating conditions (correct material selection, proper installation, and regular maintenance), the service life of our replacement plates is: SS316 plates 10-12 years, SS304 plates 8-10 years—matching the service life of original Funke parts. Regular cleaning, gasket replacement, and inspection (every 6-12 months) can further extend the service life and maintain optimal heat transfer performance.

With over 18 years of experience in heat exchanger replacement parts R&D and manufacturing, we specialize in Funke model replacement plates. We have a complete digital drawing library of Funke parts, strictly following Funke’s design standards and quality requirements. We guarantee 100% compatibility with Funke heat exchangers, zero installation risk, and performance that matches or exceeds original Funke parts—trusted by Funke equipment users worldwide.

We implement a comprehensive AQ system tailored for Funke replacement parts, with each plate undergoing rigorous compatibility testing, heat transfer testing, and durability testing. Our plates meet international industrial standards and Funke’s strict quality requirements, ensuring reliable performance, long-term durability, and seamless integration with your Funke heat exchanger systems.

Our replacement plates leverage the same advanced thermal engineering and corrugation design as original Funke parts, delivering exceptional heat transfer rates (up to 7200 W/(㎡·K)). We continuously optimize our thermal technology to enhance efficiency, ensuring your Funke heat exchanger operates at peak performance, reducing energy consumption and operational costs.

As a direct manufacturer, we eliminate middlemen to offer competitive factory-direct pricing for Funke replacement parts. Our plates deliver the same quality and performance as original Funke parts but at 35-60% of the original cost—significantly reducing your maintenance and procurement expenses, while maintaining the high reliability of your Funke equipment.

We have a stable global supply chain system, with a large stock of standard Funke model replacement plates (F Series, M Series), ensuring fast delivery for urgent maintenance needs. We provide flexible shipping options (sea/air/land) and export-standard packaging to ensure safe transportation, supporting Funke equipment users worldwide.

Our dedicated technical team specializes in Funke heat exchanger systems, providing 7×24 hours online support—helping with model matching, material selection, installation guidance, and maintenance advice. We offer an 18-month warranty for replacement plates, with free replacement for non-human-induced quality problems. For large Funke maintenance projects, we provide on-site technical support and commissioning services, ensuring smooth replacement and optimal performance.
