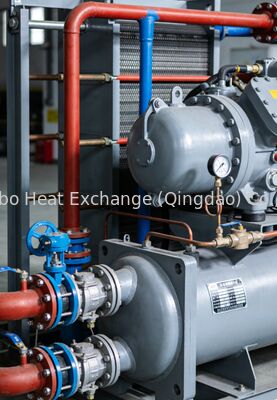

Compact Plate Fin Heat Exchange Unit Intelligent Constant Pressure

Searching for a custom-fit stainless steel plate heat exchanger unit that seamlessly integrates with your heat transfer equipment? Look no further! Our Custom Stainless Steel Plate Heat Exchanger Unit is purpose-engineered to match your unique heat transfer needs—combining premium stainless steel durability, customizable design, and industry-leading heat transfer performance. Perfect for industrial, commercial, and HVAC heat transfer systems, this tailored unit is built to adapt to your equipment’s specifications, ensuring efficient heat exchange, long-lasting reliability, and seamless compatibility. Fully compliant with ISO 9001, PED 2014/68/EU, and FDA standards, it’s the go-to choice for businesses that refuse to settle for generic exchangers that don’t fit their heat transfer equipment. Whether you’re upgrading existing heat transfer systems, replacing outdated units, or building custom heat transfer setups, this custom stainless steel plate exchanger unit delivers precision, durability, and value—no compromises, just results.

Ditch generic exchangers that force you to modify your heat transfer equipment! Our custom stainless steel plate heat exchanger unit is designed from the ground up to fit YOUR specific heat transfer needs—matching your equipment’s flow rates, pressure requirements, and installation constraints. Built with high-grade stainless steel (SS304/SS316L) to resist corrosion, wear, and extreme temperatures, it’s rugged enough for heavy-duty heat transfer applications while remaining flexible enough to adapt to your unique setup. Say goodbye to ill-fitting units, inefficient heat transfer, and frequent replacements—this is the custom solution your heat transfer equipment deserves!

One size does NOT fit all—our stainless steel plate heat exchanger unit is fully customizable to match your heat transfer equipment’s exact specifications, ensuring a perfect fit and optimal performance:

• Equipment-Specific Customization: We tailor every detail to your heat transfer equipment—flow rate (5L/min to 1000L/min), design pressure (up to 6.0MPa), operating temperature (-40℃ to +250℃), and plate size (0.05㎡ to 5.0㎡ per plate). Whether you need a compact unit for small heat transfer systems or a large-scale unit for industrial setups, we’ve got you covered.
• Seamless Integration: Designed to integrate perfectly with your existing heat transfer equipment—heat pumps, cooling systems, industrial process lines, and more. No costly modifications to your equipment, no installation headaches—just plug-and-play compatibility.
• Application-Tailored Options: Customize plate type (brazed/detachable/welded), stainless steel grade (SS304/SS316L), and gasket material (EPDM/NBR/HNBR/FPM) to match your heat transfer media (water, oils, chemicals, food-grade fluids) and operating conditions.

Stainless steel isn’t just a feature—it’s a guarantee of durability and reliability for your heat transfer equipment. Our custom unit is built with high-grade stainless steel to withstand the rigors of heat transfer applications:

• High-Grade Stainless Steel Options: Choose between SS304 (standard, cost-effective for general heat transfer) and SS316L (premium, superior corrosion resistance for harsh media, food-grade, and coastal applications). Both grades resist rust, corrosion, and chemical damage, ensuring long-term compatibility with your heat transfer equipment.
• Hygienic & Easy to Maintain: Smooth, non-porous stainless steel surfaces are easy to sanitize—perfect for food & beverage, pharmaceutical, and clean industrial heat transfer applications. No hidden crevices for dirt, bacteria, or residue to build up, keeping your heat transfer equipment running cleanly.
• Heavy-Duty Durability: Stainless steel construction resists wear, vibration, and extreme temperatures, ensuring a service life of 10-15 years—far longer than non-stainless steel exchangers. Built to handle the continuous operation of heat transfer equipment without performance dips.

Our custom stainless steel plate exchanger unit is engineered to deliver maximum heat transfer efficiency, boosting the performance of your heat transfer equipment and cutting energy costs:

• Precision Plate Design: Custom-stamped plates with herringbone or chevron corrugation create strong fluid turbulence, maximizing heat transfer contact area. Heat transfer coefficient reaches up to 7800 W/(㎡·K)—far higher than generic exchangers, ensuring faster, more efficient heat transfer for your equipment.
• Energy-Saving Operation: The tailored design minimizes heat loss and optimizes fluid flow, reducing energy consumption by 15-25% compared to ill-fitting, generic units. It’s a small customization that adds up to big savings for your heat transfer systems.
• Stable Performance: Customized to match your heat transfer equipment’s operating parameters, ensuring consistent heat transfer even in cyclic or high-demand conditions. No hot spots, no performance fluctuations—just reliable, efficient operation.

This custom stainless steel plate heat exchanger unit is designed to adapt to a wide range of heat transfer equipment and applications, with low maintenance to keep your operations running smoothly:

• Wide Application Compatibility: Suitable for industrial heat transfer, commercial HVAC, food & beverage processing, chemical processing, pharmaceutical manufacturing, and more. Customizable to handle various heat transfer media and equipment types.
• Detachable Design (Optional): Available in detachable (gasketed) models for easy cleaning and maintenance—perfect for heat transfer equipment that requires regular sanitization or inspection. Gaskets are industrial-grade and easy to replace without disassembling the entire unit.
• Low Maintenance Costs: Stainless steel construction reduces wear and tear, and the plate-type design has no moving parts—minimizing maintenance needs. Occasional cleaning and inspection are all it takes to keep the unit and your heat transfer equipment running at peak performance.

Our Custom Stainless Steel Plate Heat Exchanger Unit is tailored to fit a wide range of heat transfer equipment and applications, delivering optimized performance for every use case:

• Industrial Heat Transfer Systems: Customized to fit industrial heat transfer equipment—boilers, heat recovery units, process cooling/heating systems. Built to handle high pressures, high temperatures, and harsh media, ensuring efficient heat transfer for manufacturing processes.
• Commercial HVAC Systems: Tailored to integrate with HVAC heat transfer equipment—chillers, heat pumps, air handlers. Compact design fits in tight spaces, and high efficiency cuts energy costs for hotels, malls, office buildings, and hospitals.
• Food & Beverage Industry: Food-grade SS316L stainless steel and customizable design make it perfect for heat transfer equipment in pasteurization, cooling, and heating processes. Complies with FDA standards, preventing contamination and ensuring product safety.
• Chemical Processing: Customized with corrosion-resistant SS316L or Hastelloy (optional) to fit heat transfer equipment handling harsh chemicals. Leak-proof design ensures safe, efficient heat transfer for chemical reactions and processing.
• Pharmaceutical Industry: Sanitary stainless steel construction and FDA compliance meet strict pharmaceutical standards. Customized to fit heat transfer equipment for sterilization, fluid heating/cooling, and drug manufacturing.
• Marine & Coastal Applications: Corrosion-resistant SS316L or titanium (optional) tailored to fit marine heat transfer equipment—withstanding seawater corrosion and harsh coastal environments.

We take AQ seriously—our Custom Stainless Steel Plate Heat Exchanger Unit undergoes rigorous testing to ensure it meets your heat transfer equipment’s exact requirements, delivering optimal performance, durability, and safety:

• Custom Fit Testing: Each unit is tested to verify it matches your heat transfer equipment’s specifications—flow rate, pressure, temperature, and integration. We simulate your real-world operating conditions to ensure a perfect fit and seamless performance with your equipment.
• Heat Transfer Efficiency Testing: Tested to verify heat transfer coefficient (up to 7800 W/(㎡·K)) and energy efficiency, ensuring it boosts the performance of your heat transfer equipment. We optimize the design until it delivers the results you need.
• Pressure & Leak Testing: Each unit undergoes high-pressure testing (up to 6.0MPa) and leak testing to ensure a rugged, leak-proof design. No more costly leaks or performance failures that disrupt your heat transfer equipment.
• Stainless Steel Durability Testing: SS304/SS316L plates are subjected to 1000-hour salt spray testing and corrosion testing to verify rust and chemical resistance. We ensure the unit stands up to your heat transfer media and operating conditions, protecting your equipment.

Our custom stainless steel plate exchanger unit isn’t just a product—it’s a solution that delivers real value for your heat transfer equipment and operations:

• Save on Equipment Modifications: Custom fit eliminates the need for costly modifications to your heat transfer equipment, reducing installation time and costs by 30-40%.
• Cut Energy Costs by 15-25%: Optimized heat transfer efficiency reduces energy consumption, lowering utility bills and boosting the efficiency of your heat transfer systems.
• Minimize Downtime: Custom fit and rugged stainless steel construction mean fewer breakdowns and less maintenance, reducing costly interruptions to your heat transfer operations.
• Long Service Life = Fewer Replacements: Stainless steel construction ensures a service life of 10-15 years, reducing replacement costs and the hassle of frequent upgrades for your heat transfer equipment.

It’s easy! Just share your heat transfer equipment’s specifications—flow rate, operating temperature/pressure, media type, installation space, and application. Our team will design a tailored unit, provide a detailed quote, and walk you through the entire process from design to delivery. No guesswork, just a perfect fit for your equipment.

Pick based on your equipment’s media and environment:
